2.4.4. Changing tier attributes

Do the following to change the attributes of an already existing tier:

  1. Click on Tier menu.

  2. Go to Change tier attributes…

  3. Click on the drop down box and select the tier which attributes you want to change. The Change tier attributes dialog window for that tier appears.

  4. After making the changes, click on Change to save them. Otherwise click Cancel to exit the window without saving.

Tier menu

Figure 2.17. Tier menu

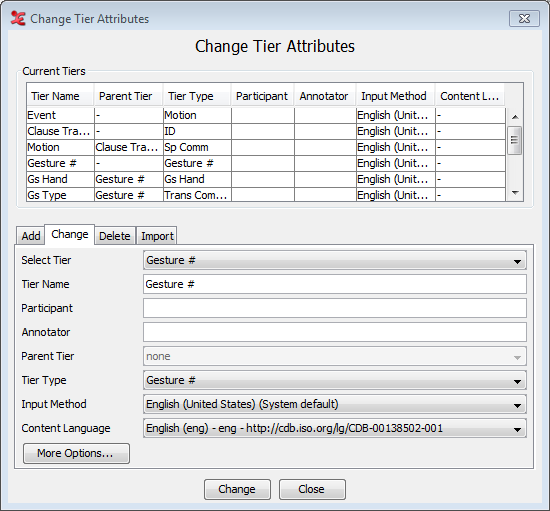

Change tier attributes

Figure 2.18. Change tier attributes


Changing the Parent Tier in this dialog is only possible if there are no annotations on the tier (because of possible data loss). To change the Parent Tier in case there are already annotations, use the Reparent Tier option (see Section 2.4.9). Similar limitations apply to changing the Type of the tier, for the same reason. To change the Type of a tier in a safe way, use the Copy Tier option (see Section 2.13.2).
