The following illustration shows an example of an annotation document:

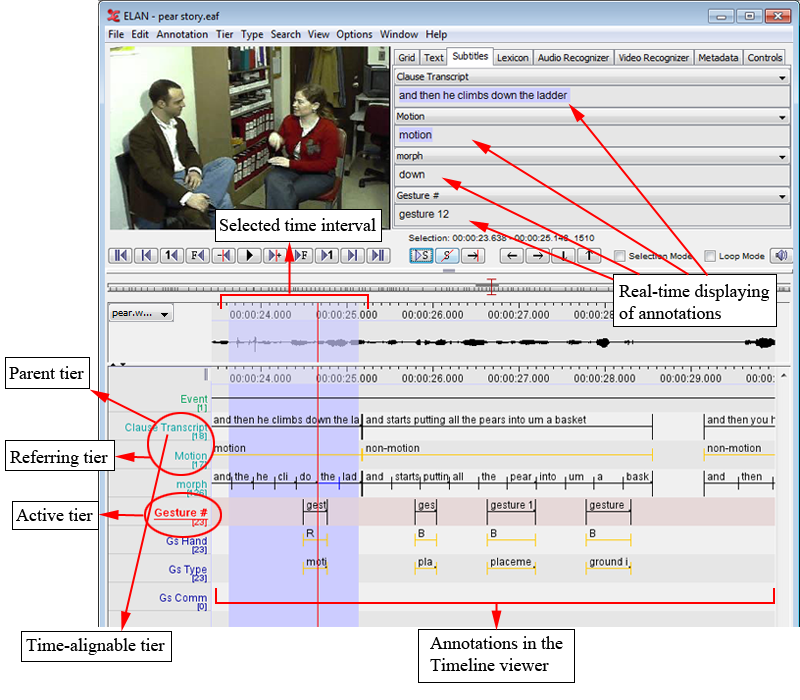

Figure 184. Annotation basics

Each annotation is entered on a tier and assigned to a time interval (either directly or to the time interval of another annotation).

All tiers can be displayed simultaneously in the Timeline or Interlinear Viewer (the section called “The Timeline Viewer and the Interlinear Viewer”), but four of them can be displayed additionally in the Subtitle Viewer. It is useful to select the tier you are currently working on in a Subtitle Viewer because this viewer is bigger and supports line wrapping (which makes it easier to read along during playback).

It is also possible to select one tier as the active tier. This can be done by double clicking on the tier name in the Timeline or Interlinear Viewer. When a tier is active, its name is underlined and displayed in red. Adding a new annotation to a tier by the keyboard shortcut ALT+N is only possible when that tier is active (see the section called “How to enter and edit annotations”).

A tier is a set of annotations that share the same characteristics, e.g., one tier containing the orthographic transcription of the speakers utterances, and another tier containing the free translation of these utterances.

The following two types of tiers exist:

One example: a transcription tier could be independent and time-alignable, as it is linked directly to the time intervals of the speakers utterances. A translation tier, by contrast, would be referring and not time-alignable: it refers to the transcription tier – not directly to the time axis. By definition, it inherits its time alignment from the transcription tier, i.e., from its parent tier.

In the Timeline and Interlinear Viewers, the label of a referring tier is assigned the same color as the label of its independent parent tier.

It is possible to build up nested hierarchies, i.e., tier A can be the parent tier of tier B, and tier B can be the parent tier of tier C, etc.

For example:

Figure 185. Tier dependencies

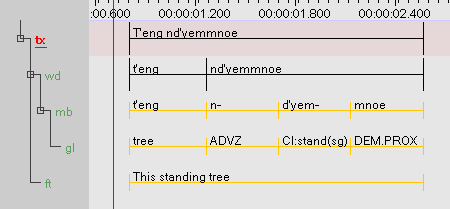

Figure 186. Tier dependencies in the timeline viewer

	Note
	Parent and child tiers are linked in such a way that some changes made on a parent tier will also affect its child tiers (but not vice versa):

You can view the existing dependency relations by clicking on View menu, and then on Tier Dependencies.

Each tier is assigned to a tier type (see also the section called “How to define a tier and its attributes”). A tier type denotes the linguistic data that is contained in the referring tier. Examples of names for tier types are utterances, words, orthography, phonetic transcription, PoS (part of speech), but any name can be used. Each tier type specifies a number of constraints that hold for all tiers assigned to that type. Such constraints are bundled into so-called ‘stereotypes’. The following five stereotypes are currently available:

Table 7. Tier type stereotypes

None	The annotation on the tier is linked directly to the time axis, i.e., the annotation is entered on an independent tier. Two annotations cannot overlap. Tiers of this type are independent tiers (cannot have a parent tier).
Time Subdivision	The annotation on the parent tier can be sub-divided into smaller units, which, in turn, can be linked to time intervals. Note that there are no time gaps allowed, i.e., the smaller units have to immediately follow each other. Tiers of this type are dependent tiers (must have a parent tier). E.g., an utterance transcribed on a parent tier can be sub-divided into words – each of which is then linked to its corresponding time interval. Note Annotations on such tiers are time-alignable. They differ from annotations on independent tiers in that they are assigned to an interval that is contained within the interval of their parent annotation.
Symbolic Subdivision	Similar to Time Subdivision, except that the smaller units cannot be linked to a time interval. The smaller units form a chain (an ordered sequence) of units. Tiers of this type are dependent tiers (must have a parent tier). E.g., a word on a parent tier can be sub-divided into individual morphemes (which are not linked to a time interval).
Included In	All annotations on a tier of this type are linked to the time axis and are enclosed within the boundaries of an annotation on the parent tier. However, there can be gaps between the child annotations (unlike Time Subdivision). Tiers of this type are dependent tiers (must have a parent tier). E.g., a sentence with a silence can be split up into words while the silence corresponds to a gap in the child annotations (i.e. the separate words).
Symbolic Association	The annotation on the parent tier cannot be sub-divided further, i.e., there is a one-to-one correspondence between the parent annotation and its referring annotation on this tier. Tiers of this type are dependent tiers (must have a parent tier). E.g., one sentence on a parent tier has exactly one free translation. Or one word has exactly one gloss.

The following example illustrates (four of) the different stereotypes (see also Figure 186, “Tier dependencies in the timeline viewer”):

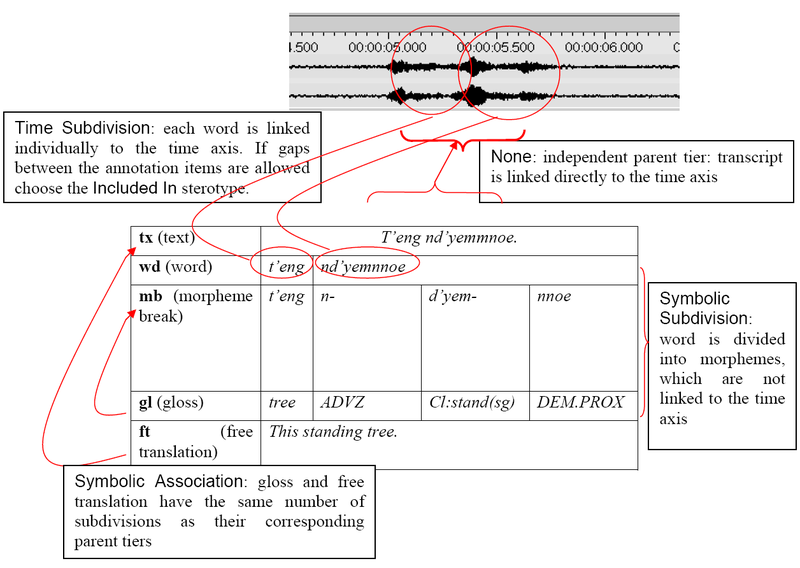

Figure 187. Examples of (four of) the stereotypes

You can define an unlimited number of tiers. It is useful to make decisions about the type of information that you want to enter (and consequently about the type of tiers that you need) at a relatively early stage in the annotation process. However, it is always possible at a later stage to change the parent of a dependent tier (see the section called “Changing the parent of a tier”) or to copy a tier (the section called “Copying tiers”) and to alter the copy.
