Creating a new document

In case you have a media file but no annotation file (*.eaf, *.txt, *.trs), click on File > New. Next, a New Transcription dialog window (see Figure 2, “The New Transcription dialog window: media”) will be displayed, e.g.:

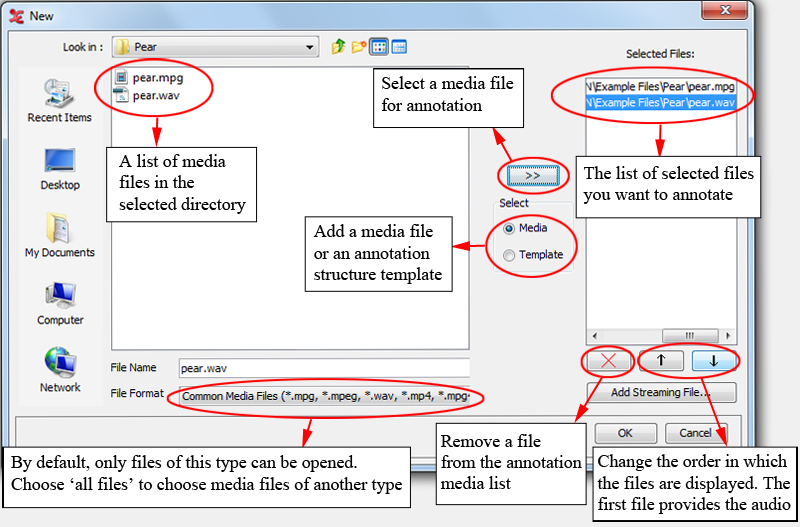

Figure 2. The New Transcription dialog window: media


Do the following:

  1. Click on the Look in pull down box (on the top left of the window) and browse to the directory that contains the media files.

  2. If you want to use media files of another type than the most common formats, select All Files or one of the other format filters in the Files Format dropdown menu. Whether or not a media type is supported depends on your software configuration.

  3. Double-click on a displayed media file (e.g. pear.wav) (*.mp4, *.mpg, *.wav, etc.) to select it. It now appears in the rightmost box. Alternatively, you can click on the media file name and click on the >> button afterwards.

  4. If you want to use a predefined set of tiers (a template), select the Template radio button and choose the template (i.e. *.etf) to be used:

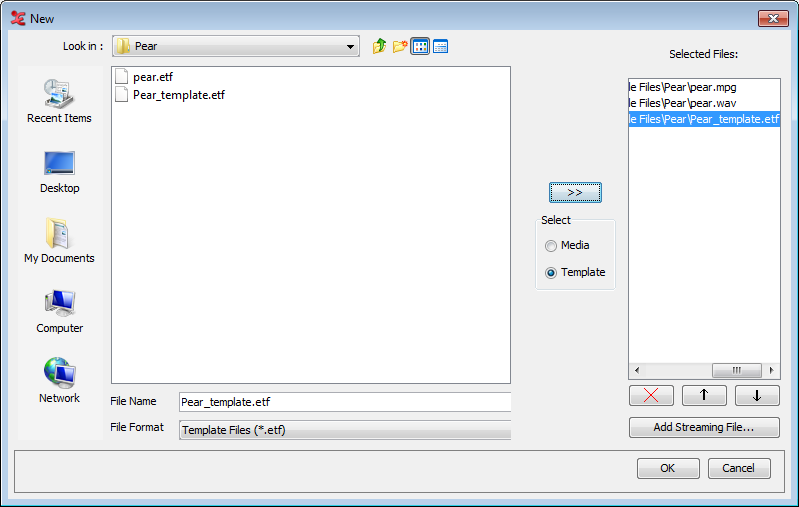

    Figure 3. The New Transcription dialog window: templates


  5. Beside media files on disk you can also add a remote file over e.g. the HTTP(S), RTSP (Real Time Streaming Protocol ) or any other protocol a media player framework might support. Click on Add Remote File... and enter or paste the full URL of the remote media. Click on OK.

  6. Click OK to open the new annotation document; otherwise click Cancel to exit the dialog window without creating a new file.

    An ELAN window containing the new document appears.

[Note]Note

The actual appearance of the window(s) shown for starting a new transcription can differ considerably depending on the operating system.

[Note]Note

By default the audible sound will be produced by the first media file in the list. Even if both a video file and a .wav file have been selected, the audible sound is from the video, if that file is the first in the list. This can be changed in the Volume section of the Controls tab (right top corner of the window).

Alternatively, you can start a new project by simply opening ELAN. Instead of choosing File > New, just browse to the files you wish to work with from within your explorer (e.g. the Finder in macOS, or Windows File Explorer), select them all and then drag n' drop them onto the ELAN main window. A new transcription will be opened containing the selected media-files.
