The Waveform Viewer displays the waveform of the audio file(*.wav) or of the audio track of a video file.

	Note
	Different resolutions of *.wav files are supported: 8 bits (mono and stereo), 16 bits (mono and stereo) and 24 bits (mono and stereo). Both PCM and A-law encoded wave files can be loaded. There is basic support for RF64 wav files (which can exceed the file size of 4GB). Supported video files for waveform visualisation depend on the framework of the operating system (Windows or macOS)

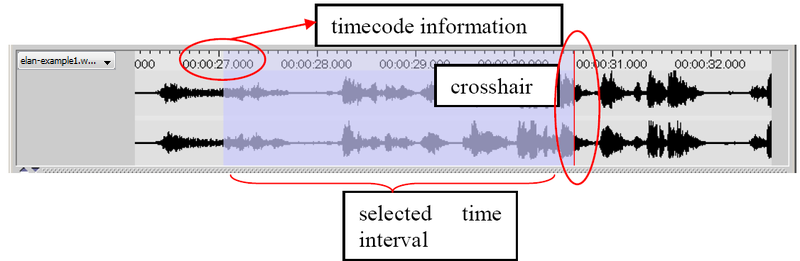

Above the waveform, time code information is displayed. This time code information can be hidden by right clicking in the Waveform Viewer and clicking on Time Ruler Visible in the context menu. In the same manner it can be made visible again.

While listening to the sound, a red vertical bar, the crosshair, moves through the waveform and indicates which part of the waveform corresponds to the current point in time. Furthermore, whenever you have selected a time interval, the corresponding part of the waveform will be highlighted in light blue color.

At any time, you can press ALT and drag the time axis for a panning effect (i.e. go to the left to go back in the time or to the right to go further). In the case of video files, the waveform is only displayed if there exists an additional *.wav file (see the section called “Basic Information”). If this is not the case, the Waveform Viewer will not be available.

	Note
	On slower machines, the Waveform Viewer may not always update properly when moving to the next page.

Figure 79. The waveform viewer

The Waveform Viewer supports 3 modes. You can select the active mode by a right click on the Waveform Viewer. In the menu Stereo Channels, the following options are available:

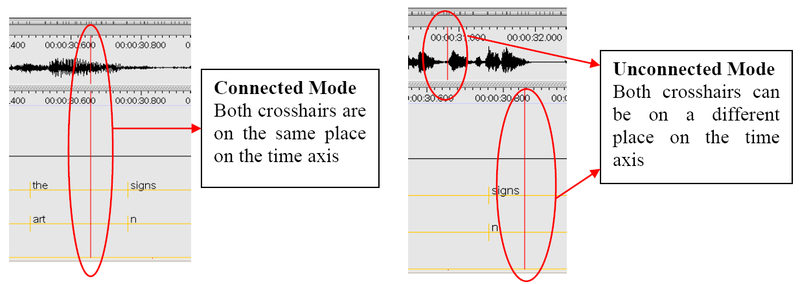

Another option in the context-menu (right click) of the Waveform Viewer is connected. If this option is checked, the time scale of the Waveform Viewer and the Timeline Viewer are connected:

Figure 80. Waveform viewer modes

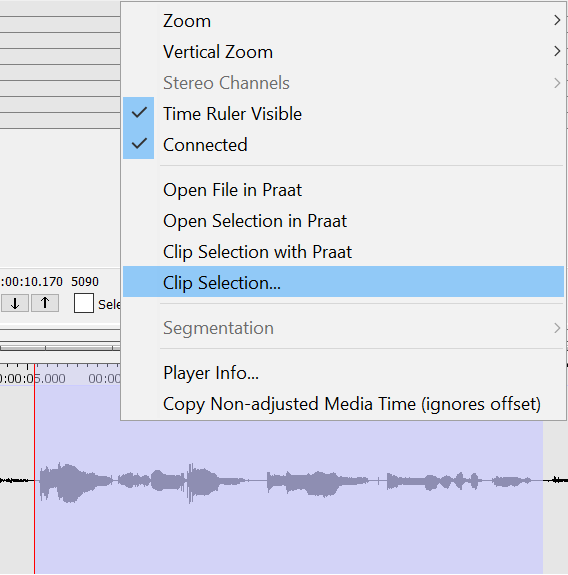

The context menu also contains options for to open the file or the selection in Praat or to clip the selection with Praat (see the section called “Opening a wave file in Praat” and the section called “Exporting a selection to a wave file with Praat”) or with Java Sound (built-in).

Figure 81. Waveform context menu

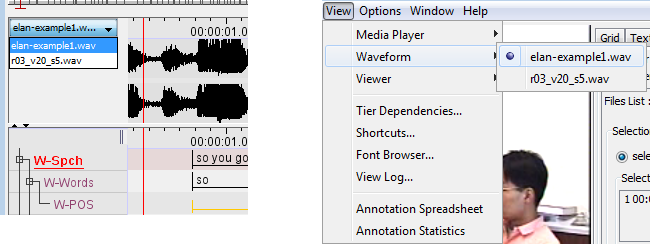

You can load multiple waveforms into your project. Only one will be visible. There are 2 ways to switch between waveforms: from the View>Waveform option in the main menu, or from the drop-down menu on the left side of the waveform viewer. The chosen waveform will be displayed in the waveform viewer:

Figure 82. Waveform visualisation switching
